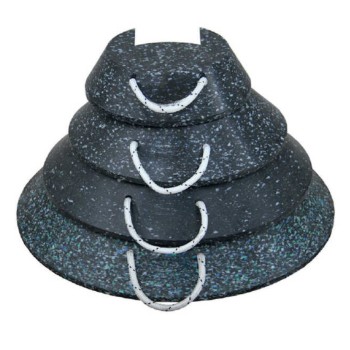

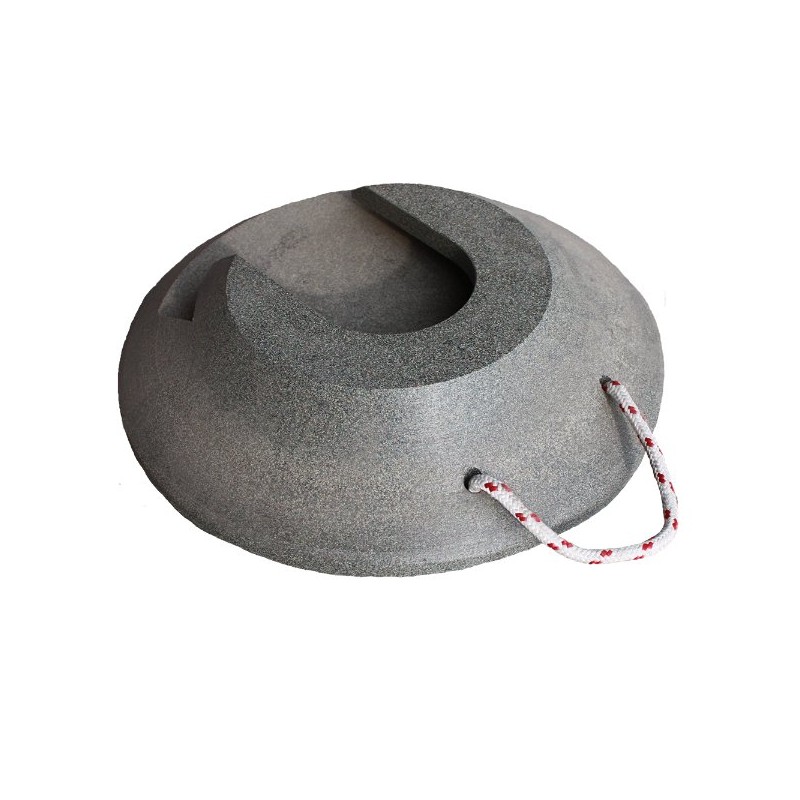

Conical crane outrigger pad Ø500 mm PAC 5.8/F – 210 and 255 mm grooves

The conical crane outrigger pad Ø500 mm PAC 5.8/F is designed for stabilizer legs with a conical housing and specific groove that require a larger support surface. Its design helps distribute the stabilizer load over the ground and improve equipment stability during work.

Manufactured from HDPE 1000, this conical crane pad is suitable for truck-mounted cranes, loader cranes, bucket trucks, aerial platforms, mobile cranes, hydraulic cranes and lifting equipment with stabilizer legs.

This product is available in two variants according to the B groove dimension:

• PAC 5.8/F 21: B groove of 210 mm.

• PAC 5.8/F 25: B groove of 255 mm.

Both versions have an external diameter D of 500 mm, total height H of 80 mm and load capacity of 29 t. The B dimension is the main data to check in order to choose the correct variant.

This pad may also be searched for as a conical pad with groove, conical stabilizer pad, conical support base for stabilizer, outrigger pad for hydraulic foot, conical jack pad or conical crane foot pad.

Before selecting the model, confirm that the stabilizer foot dimensions are compatible with the pad, especially the external diameter D, A dimension, B groove dimension and height H. The indicated load capacity does not replace ground assessment or the crane manufacturer’s safety instructions.

Technical data / Features

Internal reference

Type

D

S

d0

A

B

H

Weight

Load capacity

Indicative crane rating

Main features:

·         Product type: Conical crane outrigger pad.

·         Format: Conical with groove.

·         Material: HDPE 1000.

·         External diameter: 500 mm.

·         Total height: 80 mm.

·         Available grooves: 210 and 255 mm.

·         Load capacity: 29 t.

·         Condition: New.

·         Application: stabilizer legs with compatible conical housing.
