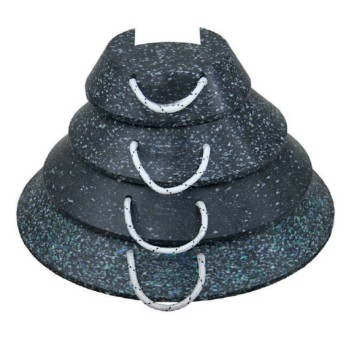

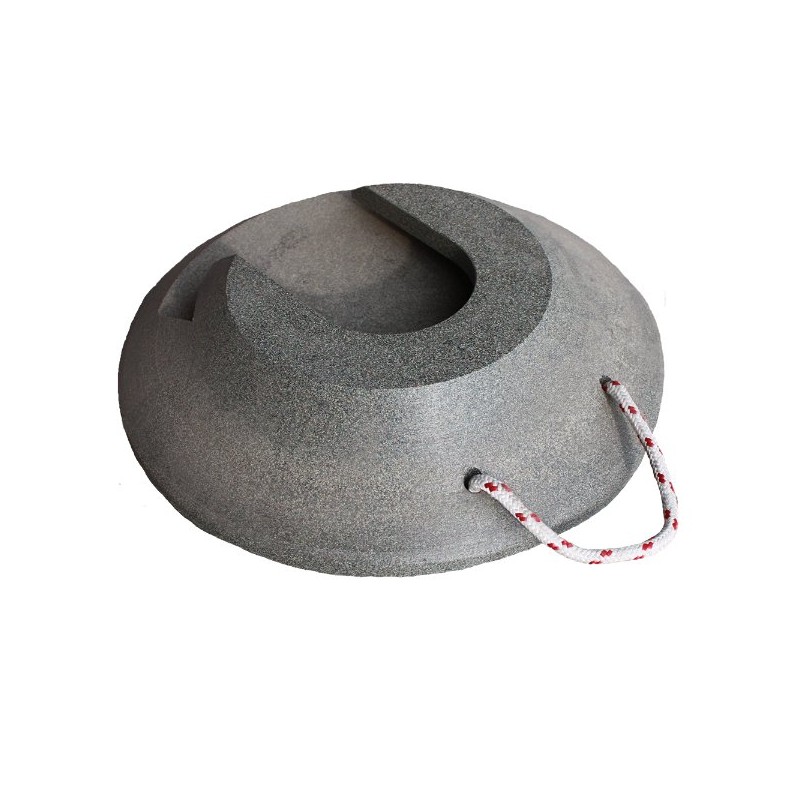

Conical crane outrigger pad Ø300 mm PAC 3.8/F – 160 and 200 mm grooves

The conical crane outrigger pad Ø300 mm PAC 3.8/F is designed for stabilizer legs with a conical housing and specific groove. Its main function is to improve the support surface between the stabilizer and the ground, helping distribute the crane load on firm or uneven ground, or in areas where a larger contact base is required.

Manufactured from HDPE 1000, this conical stabilizer pad provides a resistant solution for work with truck-mounted cranes, loader cranes, bucket trucks, aerial platforms, hydraulic cranes and other lifting equipment with stabilizer legs.

This product is available in two variants according to the B groove dimension:

• PAC 3.8/F 16: B groove of 160 mm.

• PAC 3.8/F 20: B groove of 200 mm.

Both versions have an external diameter D of 300 mm, total height H of 80 mm and load capacity of 14 t. The main difference between both references is the groove dimension, so it is important to check the B dimension before selecting the model.

This pad may also be searched for as a conical crane pad, conical stabilizer pad, conical support base for stabilizer, outrigger pad with groove, conical jack pad or conical crane foot pad.

Before placing the order, confirm that the pad dimensions are compatible with the crane stabilizer foot, especially the external diameter D, A dimension, B groove dimension and height H. The indicated load capacity does not replace ground assessment or the crane manufacturer’s safety instructions.

Technical data / Features

Main features:

·         Product type: Conical crane outrigger pad.

·         Format: Conical with groove.

·         Material: HDPE 1000.

·         External diameter: 300 mm.

·         Total height: 80 mm.

·         Available grooves: 160 and 200 mm.

·         Load capacity: 14 t.

·         Condition: New.

·         Application: stabilizer legs with compatible conical housing.
