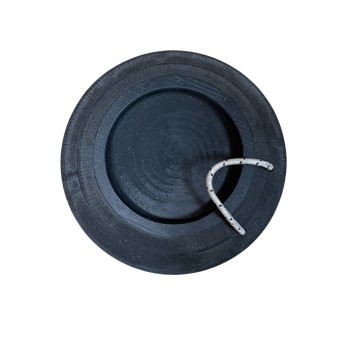

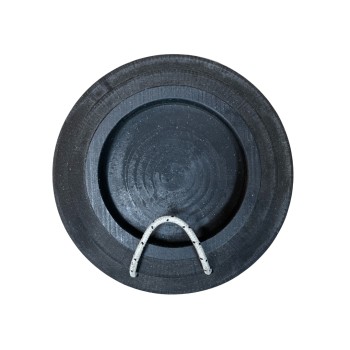

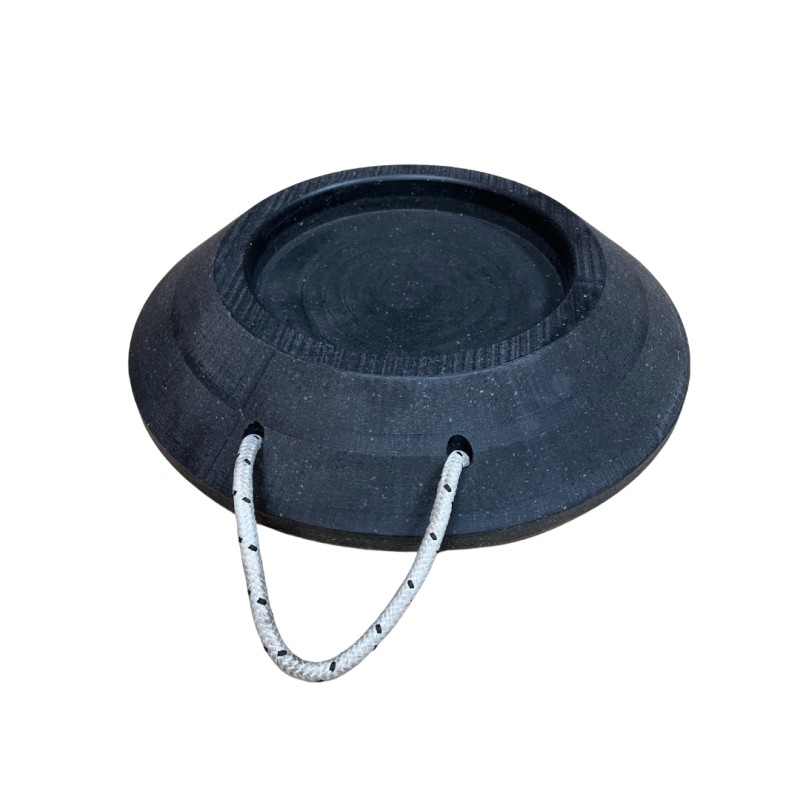

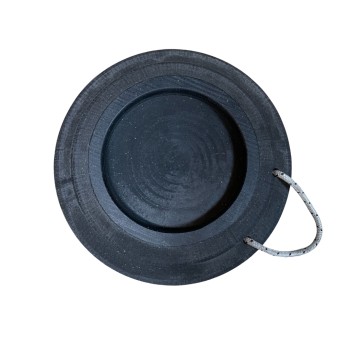

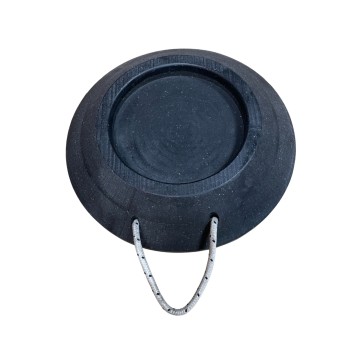

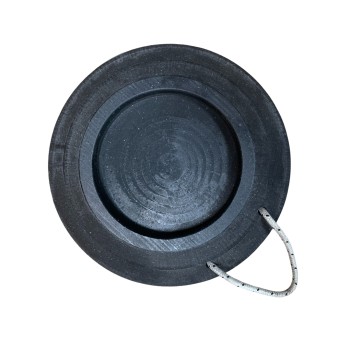

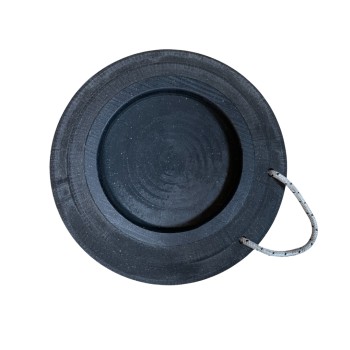

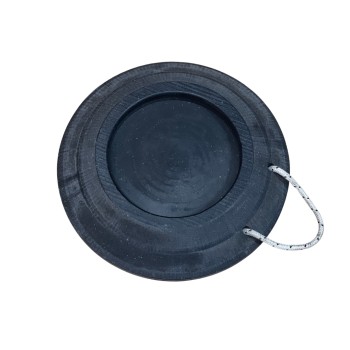

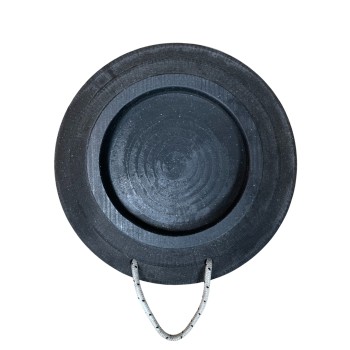

Conical crane outrigger pad without groove Ø400 mm PASN 4.7/F

The conical crane outrigger pad without groove Ø400 mm PASN 4.7/F is designed for crane stabilizer legs that require a conical support without groove housing. Its main function is to increase the contact surface between the stabilizer foot and the ground, helping distribute the load during work.

Manufactured from HDPE 1000, this conical stabilizer pad is suitable for truck-mounted cranes, loader cranes, bucket trucks, aerial platforms, mobile cranes, hydraulic cranes and lifting equipment with stabilizer legs, provided that the support dimensions are compatible.

The PASN 4.7/F model corresponds to a conical pad with external diameter D of 400 mm, total height H of 70 mm, approximate weight of 5 kg and load capacity of 17 t. Its indicative application is for cranes up to 30 tm.

Unlike PAC/F models with groove, this pad belongs to the conical pads without groove family. Its design allows use with stabilizers whose base requires a circular or conical support without longitudinal groove.

This pad may also be searched for as a conical pad without groove, conical stabilizer pad, conical base pad for stabilizer, outrigger pad without groove, conical jack pad or conical crane foot pad.

Before selecting this model, confirm that the stabilizer foot dimensions are compatible with the pad, especially the external diameter D, A dimension, B dimension and height H. The indicated load capacity does not replace ground assessment or the crane manufacturer’s safety instructions.

Technical data / Features

Main features:

• Product type: Conical crane outrigger pad.

• Format: Conical without groove.

• Material: HDPE 1000.

• External diameter: 400 mm.

• Total height: 70 mm.

• A dimension: 220 mm.

• B dimension: 260 mm.

• Approximate weight: 5 kg.

• Load capacity: 17 t.

• Condition: New.

• Application: stabilizer legs with compatible conical housing.
