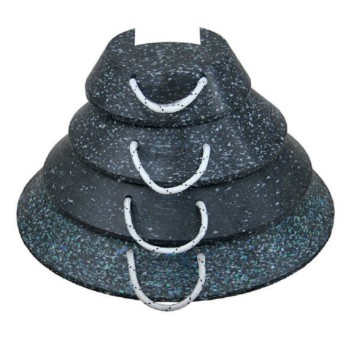

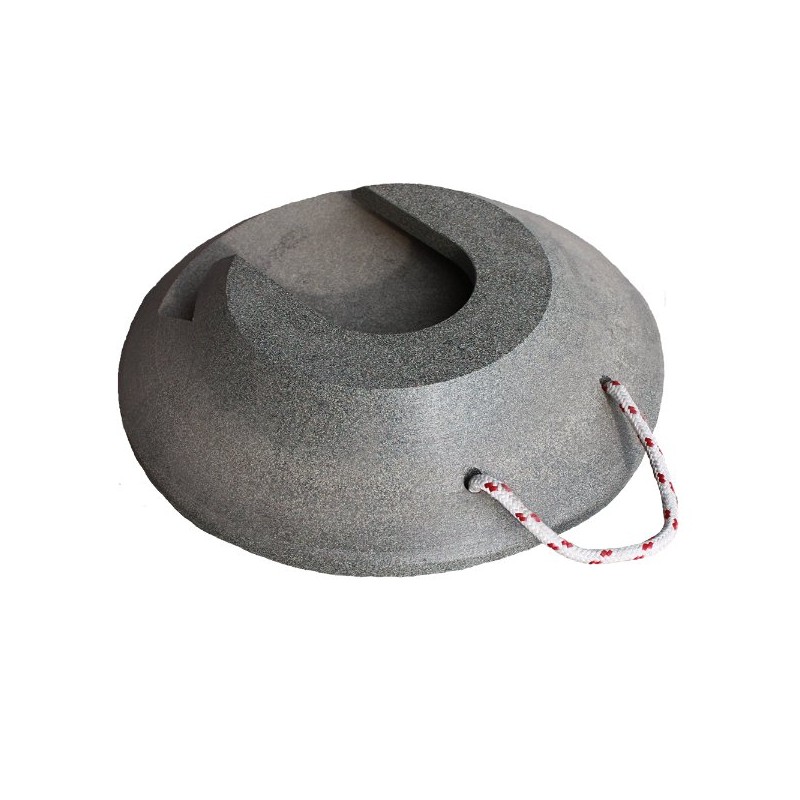

Conical crane outrigger pad Ø400 mm PAC 4.8/F – 210 mm grooves

The conical crane outrigger pad Ø400 mm PAC 4.8/F is designed for stabilizers with a conical housing and specific groove. Its design improves the support of the stabilizer foot on the ground, helping distribute the load and increase the contact surface between the stabilizer and the surface.

Manufactured from HDPE 1000, this conical stabilizer pad is suitable for applications on truck-mounted cranes, loader cranes, bucket trucks, aerial platforms, hydraulic cranes and other lifting equipment with stabilizer legs.

This product is available according to the B groove dimension:

• PAC 4.8/F 21: B groove of 210 mm.

Both versions have an external diameter D of 400 mm, total height H of 80 mm and load capacity of 22 t. The main difference between both references is the groove dimension, so it must be checked before selecting the pad.

This pad may also be called a conical stabilizer pad, outrigger pad with groove, conical outrigger pad, conical base pad for hydraulic stabilizer, conical jack pad or conical crane mat.

Before placing the order, confirm that the stabilizer dimensions are compatible with the pad, especially the external diameter D, A dimension, B groove dimension and height H. The indicated load capacity does not replace ground assessment or the crane manufacturer’s safety instructions.

Technical data / Features

Main features:

·         Product type: Conical crane outrigger pad.

·         Format: Conical with groove.

·         Material: HDPE 1000.

·         External diameter: 400 mm.

·         Total height: 80 mm.

·         Available grooves: 210 mm.

·         Load capacity: 22 t.

·         Condition: New.

·         Application: stabilizer legs with compatible conical housing.
