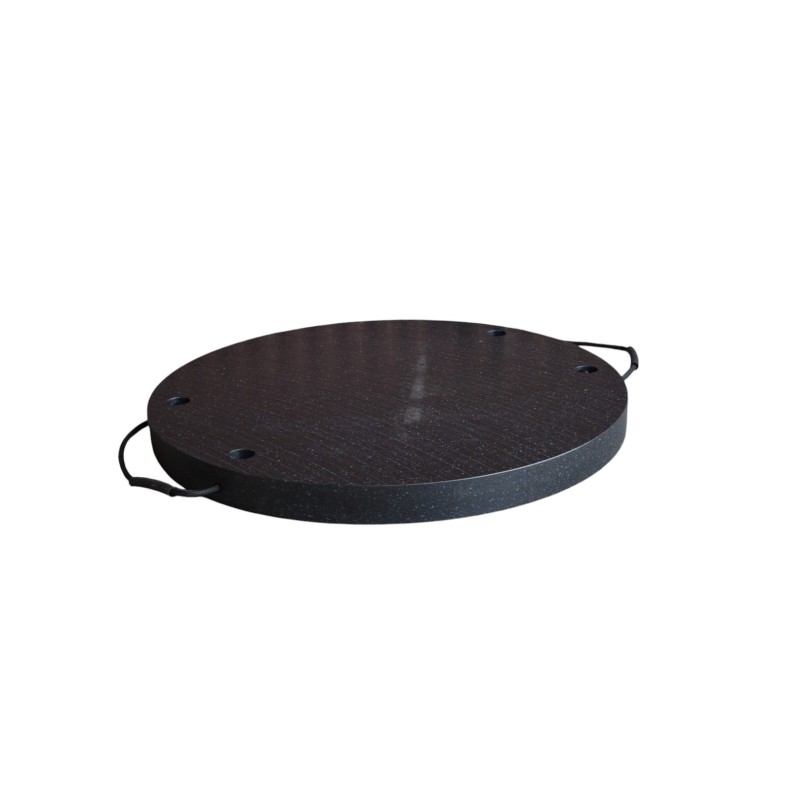

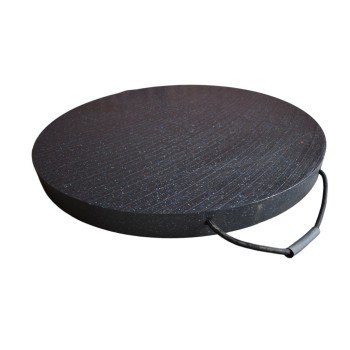

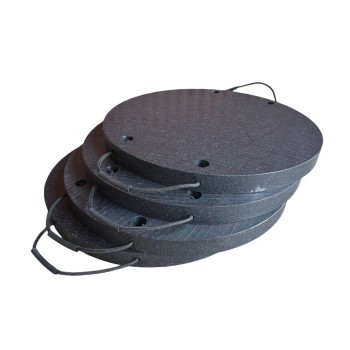

Round crane outrigger pad Ø800 mm PAR 8.6 – 60 mm thickness

The round crane outrigger pad Ø800 mm PAR 8.6 is designed for stabilizer legs that require a circular support base. Its main function is to increase the contact surface between the stabilizer and the ground, helping distribute the crane load during operation.

Manufactured from HDPE 500, this round pad has an external diameter of 800 mm, 60 mm thickness, approximate weight of 30 kg and estimated load capacity of 35,000 kg. It includes 2 carrying handles to make handling easier.

This model is recommended for stabilizers with an approximate base diameter of 320 mm, and can be used on mobile cranes, self-propelled cranes, truck-mounted cranes, hydraulic cranes, loader cranes and lifting equipment with stabilizer legs.

Although square pads are the most common format, round outrigger pads can be recommended when the shape of the stabilizer foot, the type of support or the working conditions require a circular base.

This product may also be searched for as a round crane pad, circular stabilizer pad, round stabilizer base, round pad for hydraulic outrigger, circular outrigger pad or round outrigger pad.

Before selecting this model, confirm that the diameter, thickness, load capacity and support surface are suitable for the stabilizer foot, working load and ground type. For other diameters or thicknesses, custom manufacturing can be requested.

Technical data / Features

Main features:

• Product type: Crane outrigger pad.

• Format: Round / circular.

• Internal reference: PAR 8.6.

• External diameter: Ø800 mm.

• Thickness: 60 mm.

• Material: HDPE 500.

• Approximate weight: 30 kg.

• Estimated load capacity: 35,000 kg.

• Recommended stabilizer base diameter: 320 mm.

• Handles: 2.

• Condition: New.

• Application: stabilizer legs on cranes and lifting equipment.

• Other thicknesses or sizes: on request.
