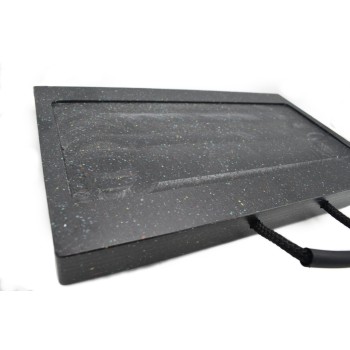

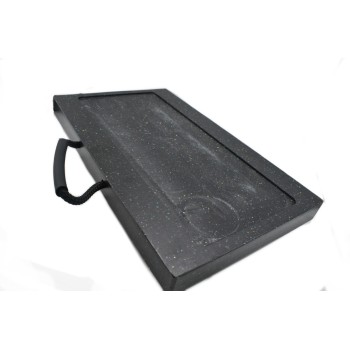

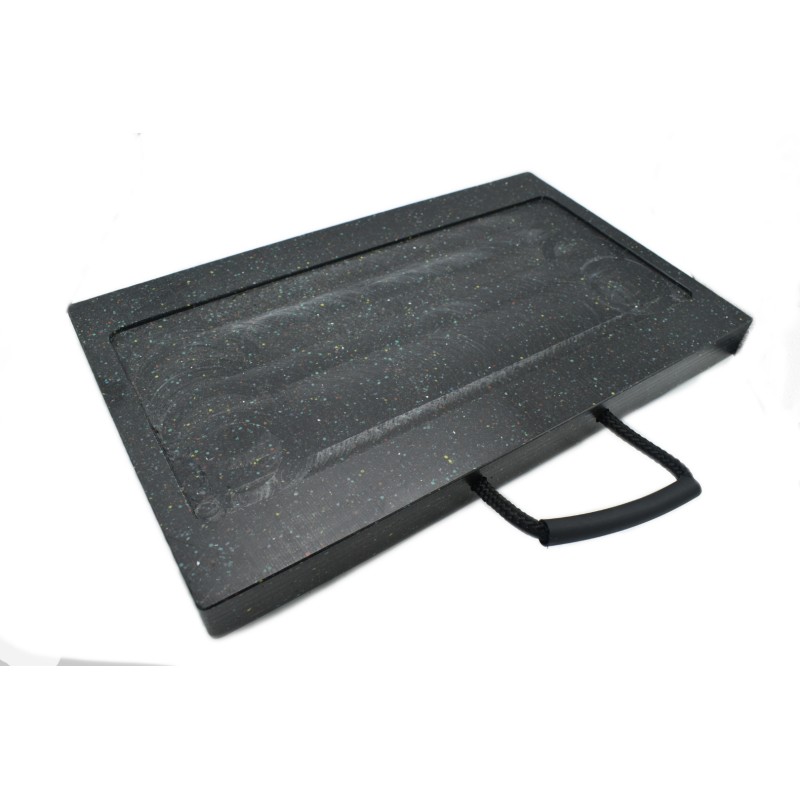

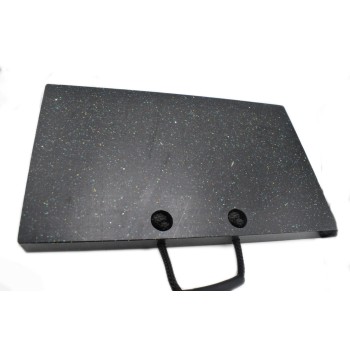

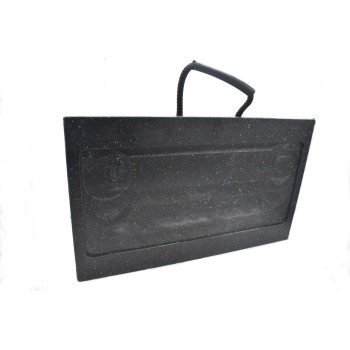

Rectangular crane outrigger pad 500x300x40 mm PAP 5/3.4/P

The rectangular crane outrigger pad 500x300x40 mm PAP 5/3.4/P is designed to improve the support of stabilizer legs on truck-mounted cranes, loader cranes, bucket trucks, aerial platforms, mobile cranes and lifting equipment fitted with hydraulic outriggers.

Manufactured from high-density polyethylene HDPE 500, this rectangular stabilizer pad helps distribute the load of the outrigger foot over the ground, increasing the contact surface between the stabilizer and the surface. Its rectangular format can be useful in applications where, due to available space, support shape or installation requirements, a different base from standard square outrigger pads is needed.

This PAP 5/3.4/P model corresponds to a rectangular outrigger pad measuring 500x300 mm with a thickness of 40 mm, approximate weight of 6 kg, recommended stabilizer foot base diameter of 200 mm and estimated load capacity of 11,000 kg.

Unlike square outrigger pads, rectangular pads are not the most common format within the standard range, but this model allows customers to see that outrigger pads can also be supplied in special formats. In addition to this rectangular pad, other sizes, thicknesses and formats can be manufactured on request, depending on support requirements, stabilizer foot dimensions, crane type and working conditions.

This rectangular outrigger pad may also be searched for as a rectangular stabilizer pad, rectangular support pad, rectangular base pad, crane mat, outrigger mat, jack pad, crane foot pad or load spreading pad for hydraulic outriggers.

---------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data / Features

Main features:

• Product type: Crane outrigger pad

• Model: PAP 5/3.4/P

• Format: Rectangular

• Size: 500 x 300 mm

• Thickness: 40 mm

• Full dimensions: 500 x 300 x 40 mm

• Approx. weight: 6 kg

• Material: High-density polyethylene PEHD 500 / HDPE 500

• Recommended stabilizer foot base diameter: 200 mm

• Estimated load capacity: 11,000 kg

• Carrying handle: Yes, 1 handle

• Condition: New

• Application: Front and rear stabilizer legs

• Recommended use: Truck-mounted crane, loader crane, bucket truck, aerial platform, mobile crane and hydraulic cranes

• Special manufacturing: Other sizes and thicknesses available on request

Compatibility / Applications

This rectangular model can be a useful option when the support surface needs to be adapted to a specific space or when the standard square format does not match the customer’s requirements.

Before selecting the pad, always confirm the stabilizer foot size, support diameter, real working load, ground type and crane manufacturer specifications.

Benefits

• Rectangular format for applications where a standard square pad is not required.

• Manufactured from HDPE 500, a resistant material suitable for professional use.

• Approximate weight of 6 kg, making handling easier.

• Integrated carrying handle.

• Estimated load capacity of 11,000 kg.

• Recommended for 200 mm stabilizer foot base diameter.

• Helps distribute the load of the stabilizer leg over the ground.

• Improves the support surface between the stabilizer and the ground.

• Suitable for front and rear stabilizers.

• Applicable to truck-mounted cranes, loader cranes, bucket trucks, aerial platforms and mobile cranes.

• Shows customers that special-size outrigger pads can be manufactured.

• Useful option for custom requests in non-standard sizes, thicknesses or formats.

Warnings / Safety notes

The indicated load capacity is estimated. The selection of the outrigger pad must take into account the real working load, stabilizer foot diameter, ground type, load distribution and crane or equipment manufacturer specifications.

The outrigger pad does not replace ground assessment or the manufacturer’s safety instructions. For critical applications or special sizes, always confirm suitability with the technical department or official documentation.
