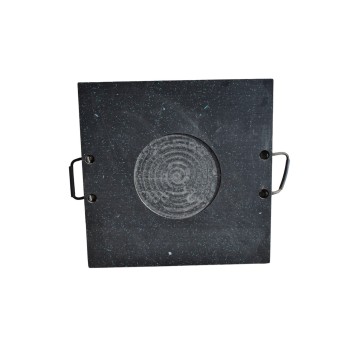

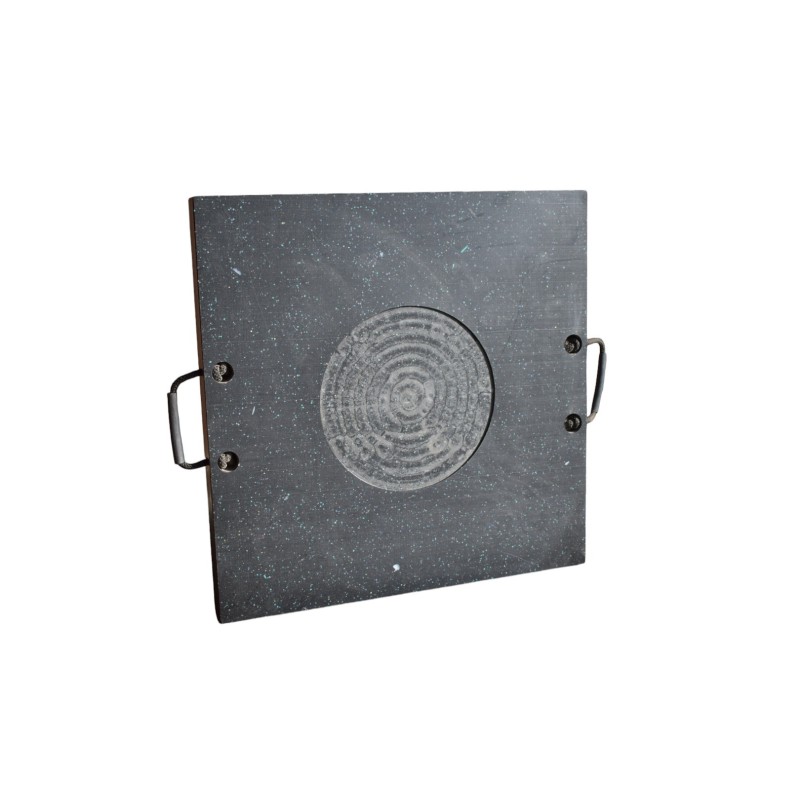

Crane outrigger pad 700x700 mm – 40, 50, 60 and 80 mm thickness
€92.00
Tengo una duda
€111.32IVA Inc.
Stabilizer pads for articulated crane stabilizers are designed to provide enhanced stability and safety during crane operations. With dimensions of 700 x 700 mm, these pads allow for even weight distribution on uneven surfaces, protecting both the crane stabilizers and the integrity of the ground.
The 700x700 mm crane outrigger pad is designed to provide a larger support surface under stabilizer legs on truck-mounted cranes, loader cranes, bucket trucks, aerial platforms, mobile cranes and lifting equipment.
Manufactured from HDPE 500, it helps distribute the load of the hydraulic outrigger foot over the ground. It is a suitable stabilizer pad for jobs where a wider support base and higher capacity are required compared with smaller pads.
Available in four thickness versions: 40, 50, 60 and 80 mm. All versions include one carrying handle.
---------------------------------------------------------------------------------------------------------------------------------------------------------
Technical data / Features
|
Model |
Size |
Thickness |
Recommended outrigger foot diameter |
Approx. weight |
Estimated load capacity |
Handles |
|
PAP 7.4/P |
700x700 mm |
40 mm |
320 mm |
20 kg |
20,000 kg |
1 |
|
PAP 7.5/P |
700x700 mm |
50 mm |
320 mm |
24.5 kg |
25,000 kg |
1 |
|
PAP 7.6/P |
700x700 mm |
60 mm |
320 mm |
29 kg |
30,000 kg |
1 |
|
PAP 7.8/P |
700x700 mm |
80 mm |
320 mm |
39 kg |
30,000 kg |
1 |
• Material: High-density polyethylene PEHD 500 / HDPE 500
• Shape: Square
• Condition: New
• Application: Front and rear stabilizer legs
Compatibility / Applications
Recommended for truck-mounted cranes, loader cranes, bucket trucks, aerial platforms, mobile cranes and hydraulic cranes with stabilizer legs.
Benefits
• Larger support surface.
• Available up to 80 mm thickness.
• Manufactured from HDPE 500.
• One carrying handle.
• Recommended outrigger foot base diameter of 320 mm.
• Estimated load capacity up to 30,000 kg depending on version.
Warnings / Safety notes
Always confirm the correct pad according to the real working load, ground type and manufacturer specifications
