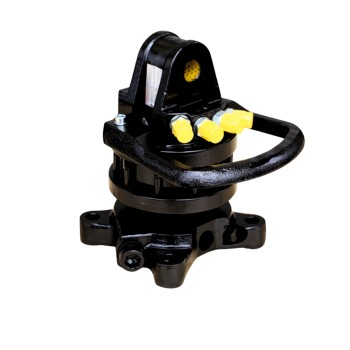

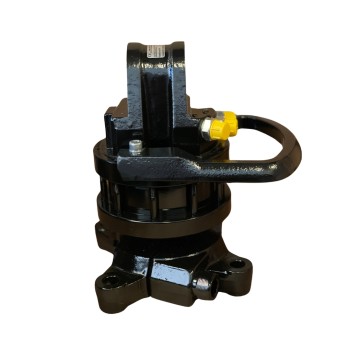

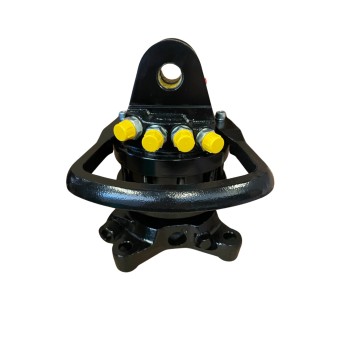

Hydraulic 4-flange rotator R4B-R3/F


The R4B-R3/F rotator is a hydraulic component designed for demanding applications in articulated cranes. Built with durable materials, it is engineered to deliver optimal performance in handling tasks that require precision, reliability, and efficiency.
This 4-flange model allows continuous and controlled rotation, ensuring excellent maneuverability during operation.

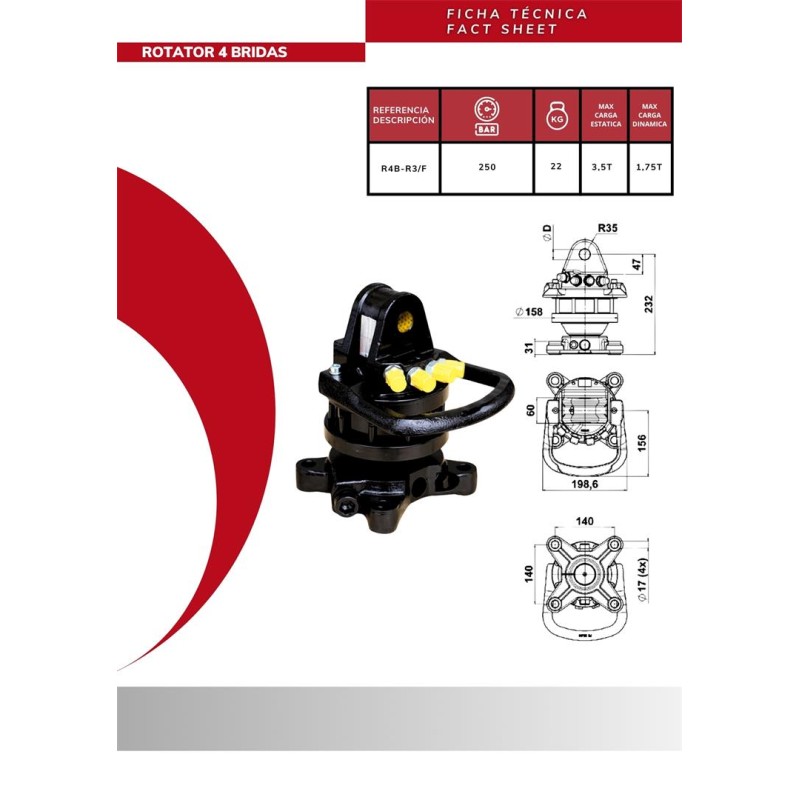

Technical Specifications:

• Working pressure: 250 bar

• Weight: 22 kg

• Maximum static load: 3.5 tonnes

• Maximum dynamic load: 1.75 tonnes

Advantages:

• Compact and durable design

• Continuous rotation for greater movement precision

• High static and dynamic load capacity

• Compatible with a wide range of articulated cranes

• Ideal for lifting, loading, and unloading tasks

Applications:
Perfect for industrial and construction projects, as well as operations with articulated cranes that require safe and efficient material handling.
