Iron Man Basket CPFA-2H-F
€6,973.00
Tengo una duda
€8,437.33IVA Inc.

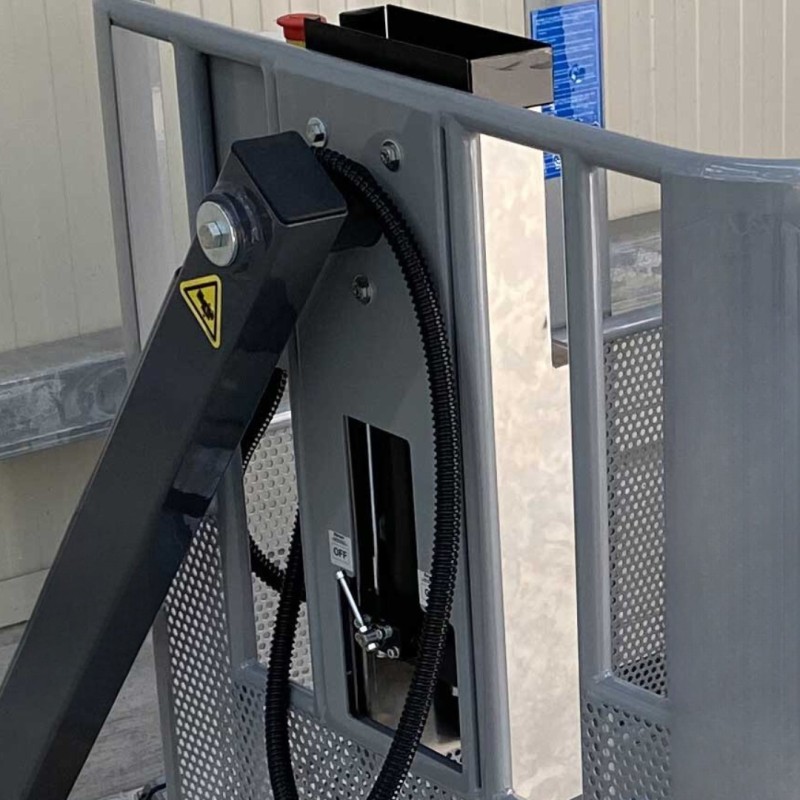

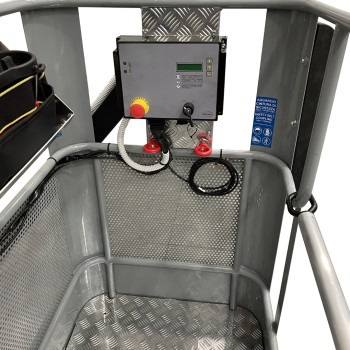

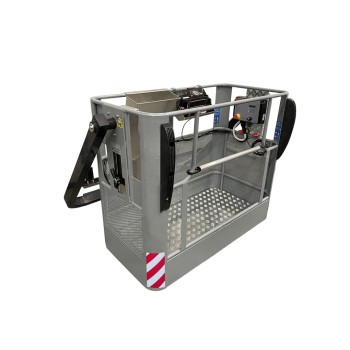

Special self-leveling fixed man basket CPFA-2H-F
This fixed basket for two people is a safe and fully self-leveling solution designed for truck-mounted hydraulic cranes, with the ability to work under bridges. Made of high-strength iron, this basket ensures the safety and comfort of the operators, allowing easy and efficient handling even in the most demanding work conditions.
Main Features:
- Material: Iron

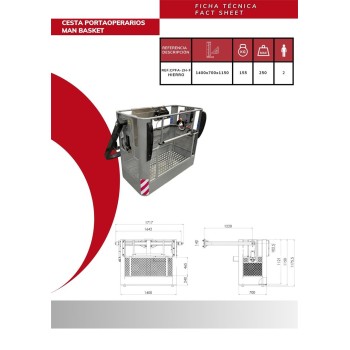

- External Dimensions (mm): 1400x700x1150 (L x W x H)
- Weight: 155 kg
- Load Capacity: 250 kg
- CE Standards: All our baskets comply with European safety standards.
Special Features:
- Fully self-leveling with the possibility of use under bridges.
- Non-continuous 360° arm rotation.
- Manually adjustable electronic board via trimmer.
- Power supply: 12V - 24V.
- Innovative patented ball actuator.
- Safety valve for locking or unlocking arm rotation.
Available Accessories:
- Crane-basket adapter (1 m long): To connect the basket to a crane, a crane connection is required. It is an additional arm welded to a flanged connection that will slide into the last extension of the crane and then lock in place with a pin.
- Crane-basket adapter (1.5 m long)
- Quick coupling for crane attach and detach
- Mini/maxi RC400 control box or similar
- Dorsal/pectoral safety harness: To attach the safety harness for people to the basket.
- Option to request a complete safety kit with helmet and lifelines.
Compatibility: This basket is compatible with various types of machinery, including truck-mounted articulated cranes. You can consult our team for advice.
Additional Services: We offer basket coupling and certification services to the crane according to the make and model of the machine. Contact us for more information and to customize your order.
Special self-leveling fixed man basket CPFA-2H-F
This fixed basket for two people is a safe and fully self-leveling solution designed for truck-mounted hydraulic cranes, with the ability to work under bridges. Made of high-strength iron, this basket ensures the safety and comfort of the operators, allowing easy and efficient handling even in the most demanding work conditions.
Main Features:
- Material: Iron
- External Dimensions (mm): 1400x700x1150 (L x W x H)
- Weight: 155 kg
- Load Capacity: 250 kg
- CE Standards: All our baskets comply with European safety standards.
Special Features:
- Fully self-leveling with the possibility of use under bridges.
- Non-continuous 360° arm rotation.
- Manually adjustable electronic board via trimmer.
- Power supply: 12V - 24V.
- Innovative patented ball actuator.
- Safety valve for locking or unlocking arm rotation.
Available Accessories:
- Crane-basket adapter (1 m long): To connect the basket to a crane, a crane connection is required. It is an additional arm welded to a flanged connection that will slide into the last extension of the crane and then lock in place with a pin.
- Crane-basket adapter (1.5 m long)
- Quick coupling for crane attach and detach
- Mini/maxi RC400 control box or similar
- Dorsal/pectoral safety harness: To attach the safety harness for people to the basket.
- Option to request a complete safety kit with helmet and lifelines.
Compatibility: This basket is compatible with various types of machinery, including truck-mounted articulated cranes. You can consult our team for advice.
Additional Services: We offer basket coupling and certification services to the crane according to the make and model of the machine. Contact us for more information and to customize your order.
CPFA-2H-F
